APEX Assembly Manual & Operating Guide

Thank you for purchasing the APEX Basketball Training System.

APEX is a powered basketball training machine designed to automatically return and launch basketballs for individual and team training. The system incorporates moving mechanical components, stored spring energy, electronic controls, sensors, and automatic launching functions capable of operating without additional user input.

Because APEX contains moving mechanisms and automatically launches basketballs, improper assembly, operation, maintenance, or use may result in equipment damage, property damage, serious injury, or death.

Before assembling or operating the machine, read and understand this entire manual, including all safety warnings, assembly instructions, operating procedures, maintenance requirements, and troubleshooting information.

Only operate the machine as described in this manual. Retain this manual for future reference and provide it to any future owner or operator of the product.

The APEX Basketball Training System is a general-use basketball training product intended for operators age 13 and older.

APEX is intended solely for the automated return and launching of regulation size 6 (28.5") and size 7 (29.5") basketballs on basketball hoops with rim heights between 9.5 ft (2.9 m) and 10 ft (3.05 m) for basketball training and practice.

APEX is not a toy and is not intended for children 12 years of age or younger. Users under 18 years of age should operate the machine only under adult supervision.

Only operate the machine after reading, understanding, and agreeing to follow all instructions, warnings, and safety procedures in this manual.

The owner and operator are responsible for ensuring safe use of the machine. This includes:

• Ensuring that all operators are age 13 or older.
• Ensuring that users under 18 are supervised by an adult.
• Reading and following all instructions and safety warnings.
• Ensuring the machine is properly assembled, inspected, and maintained before use.
• Ensuring all users, players, and bystanders understand the machine’s operation and associated hazards.
• Keeping children 12 years of age or younger away from the machine during setup, operation, maintenance, and storage.

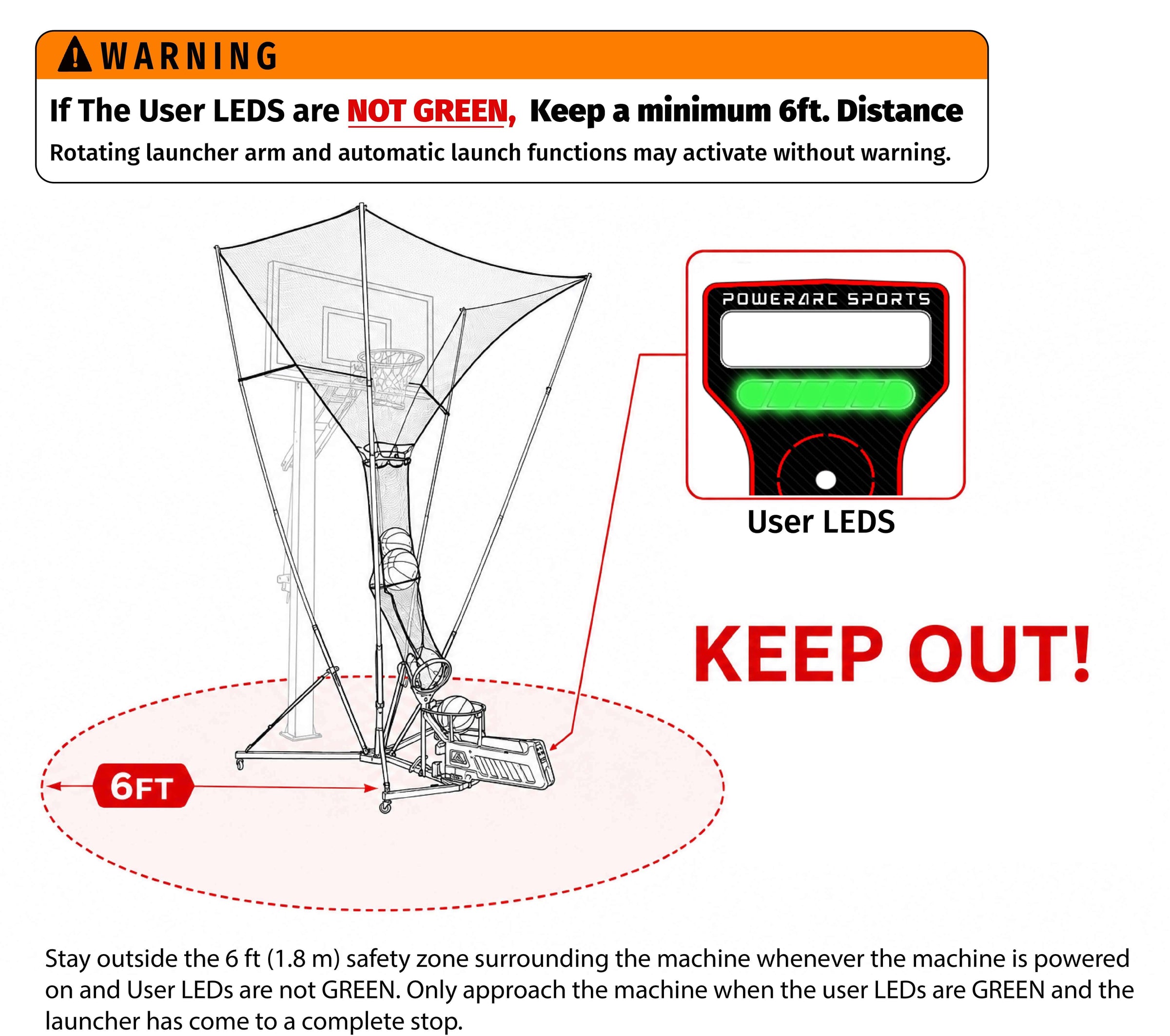

• Enforcing the 6 ft safety zone whenever the machine is powered.
• Preventing unauthorized, unsafe, or improper use of the machine.
• Disconnecting power and removing the battery before servicing, cleaning, storing, transporting, or leaving the machine unattended.

1. This product is not a toy. Operation is intended only for users age 13 and older; users under 18 should operate the machine only under adult supervision.
2. The owner and operator are responsible for ensuring that all users, players, and bystanders are aware of the machine's operation and associated hazards.

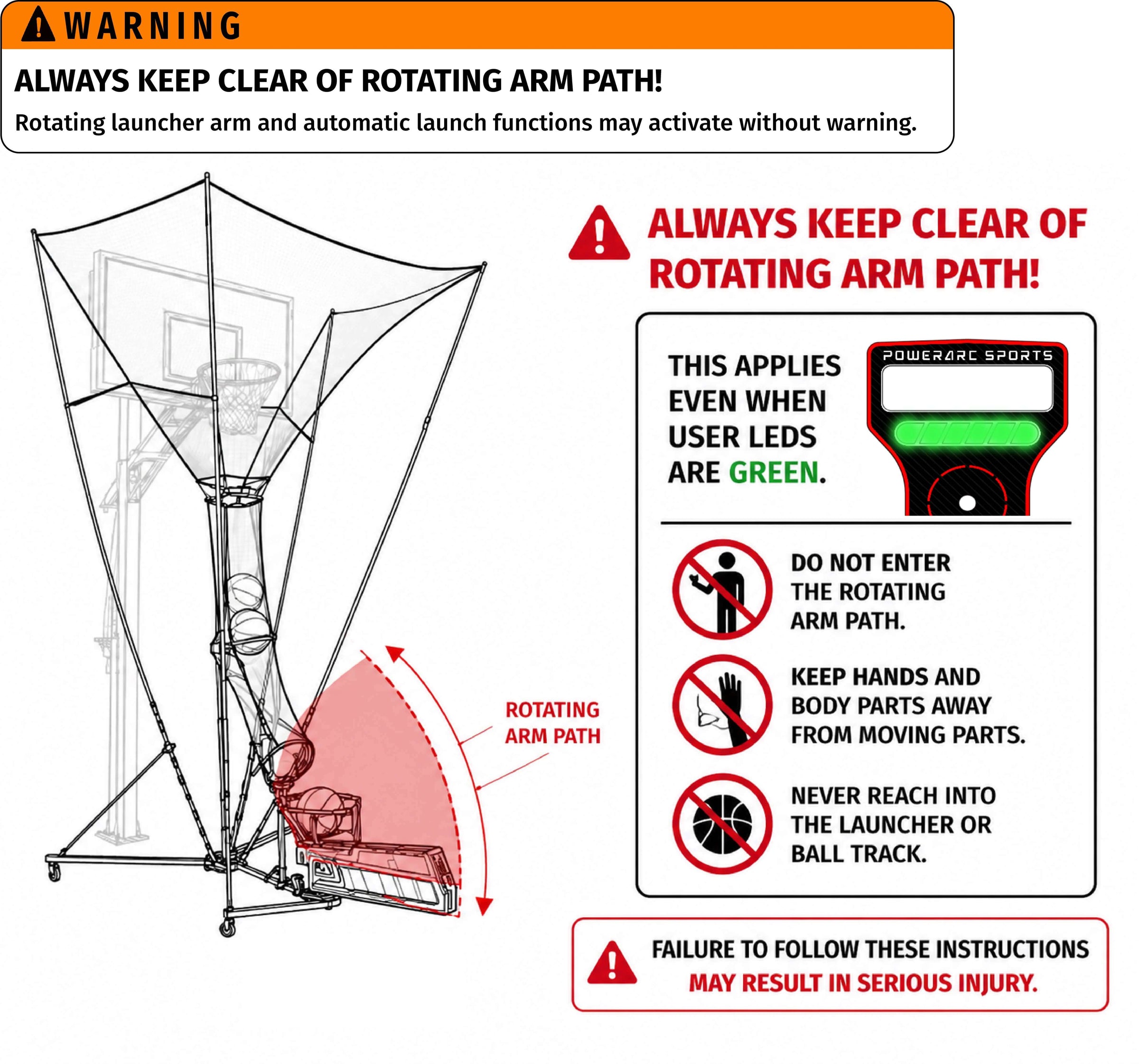

3. Keep hands, fingers, hair, clothing, jewelry, and other body parts away from the throwing arm, moving parts, and pinch points. Never place or remove a basketball directly on the throwing arm.
4. Battery Notice: SHOTSENSE contains an internal, non-user-replaceable coin cell battery. Do not open SHOTSENSE or attempt to remove or replace the battery. If SHOTSENSE stops operating, contact PowerArc Sports for service or replacement. Keep the product away from children if the housing is cracked, damaged, or opened.
5. Do not use metal basketball hoop nets. Metal nets may damage the capture net and void warranty.
6. Never connect the battery and power supply at the same time. Use only one power source at a time.
7. Do not operate the machine in windy, wet, or damp conditions. Always use the provided net ballast bag during operation to reduce the risk of tip-over.
8. Operate the machine only on a stable, solid, level surface.
9. Use only PowerArc Sports approved accessories, attachments, replacement parts.
10. Inspect the machine before each use. Never operate a machine that is damaged, malfunctioning, or improperly assembled.
11. Before servicing, cleaning, storing, transporting, or leaving the machine unattended, disconnect the power supply and remove the battery.
12. Do not open, disassemble, modify, repair, or tamper with the machine, battery, charger, power supply, or electrical components.
13. Do not use the machine for any purpose other than returning and launching basketballs for training and practice.

Approved Equipment

Use only PowerArc Sports approved battery packs, and chargers.

Charging Safety

• Charge batteries only in a clean, dry, well-ventilated location.
• Do not charge damaged, swollen, leaking, wet, punctured, cracked, or excessively hot batteries.
• Disconnect the charger immediately if abnormal heat, odor, smoke, or swelling occurs.

Storage and Handling

• Store batteries in a cool, dry location away from direct sunlight, moisture, and sources of heat.
• Do not expose batteries, chargers, or electrical connectors to rain, standing water, or excessive moisture.
• Remove the battery before transport, storage, cleaning, inspection, maintenance, or service..
• Inspect battery contacts before each use and keep them clean and dry.
• Do not use batteries or chargers that have been dropped, crushed, submerged, modified, or otherwise damaged.
• Do not disassemble, crush, puncture, short-circuit, or incinerate batteries.
• Dispose of batteries in accordance with local regulations and applicable battery recycling requirements.

Approved Equipment

• Use only the PowerArc Sports approved APEX power supply model specified for this product.
• Do not use third-party power supplies, adapters, or chargers.

Operating Conditions

• Use the power supply in dry locations only.
• Do not operate the power supply in rain, standing water, puddles, or wet conditions.
• Do not handle power cords, connectors, or plugs with wet hands.

Inspection and Service

• Inspect the power supply, cables, and connectors before each use.
• Do not use damaged cords, cracked housings, loose connectors, or modified electrical components.
• Disconnect power before cleaning, maintenance, transport, or storage.
• Do not open, modify, or attempt to repair the power supply.

PowerArc Sports stands behind the quality of the APEX Basketball Training System. The following summary is provided for convenience. Refer to the complete warranty policy for full terms and conditions.

What Is Covered

The warranty covers defects in materials and workmanship that occur during normal use and operation of the product.

For covered warranty claims, PowerArc Sports may, at its discretion, repair the product, provide replacement parts, or replace defective components.

What Is Not Covered

The warranty does not cover:

• Damage caused by misuse, abuse, neglect, accidents, improper assembly, improper storage, or operation contrary to this manual.
• Damage caused by unauthorized repairs, modifications, alterations, or tampering.
• Damage resulting from water intrusion, flooding, weather exposure, corrosion, or environmental conditions beyond the product's intended use.
• Cosmetic damage that does not affect product function.
• Normal wear and tear of consumable or wear components.
• Damage caused by non-approved batteries, chargers, power supplies, accessories, replacement parts, or attachments.
• Damage to other property, personal injury, or consequential damages to the extent permitted by applicable law.
• Labor, installation, assembly, transportation, shipping, or service costs unless expressly authorized by PowerArc Sports.

Warranty Requirements

• Proof of purchase is required for warranty service.
• Warranty coverage applies only to the original purchaser unless otherwise required by applicable law.
• Warranty claims must be submitted in accordance with the procedures described in the complete warranty policy.

Support

For warranty claims, replacement parts, technical support, or service questions, contact PowerArc Sports Customer Support using the contact information provided in this manual.

Regular inspection and maintenance help ensure safe operation and maximize product life. Do not operate APEX if any component is damaged, missing, loose, excessively worn, or not functioning properly.

Before Each Use:

• Verify all visible fasteners are secure.
• Inspect the throwing arm, tension straps, buckles, cords, netting, wheels, and structural components for damage, wear, cracks, or loose parts.
• Check for unusual noises, excessive wear, cracks, damage, or loose parts.
• Verify the user display, LEDs, and controls operate correctly.

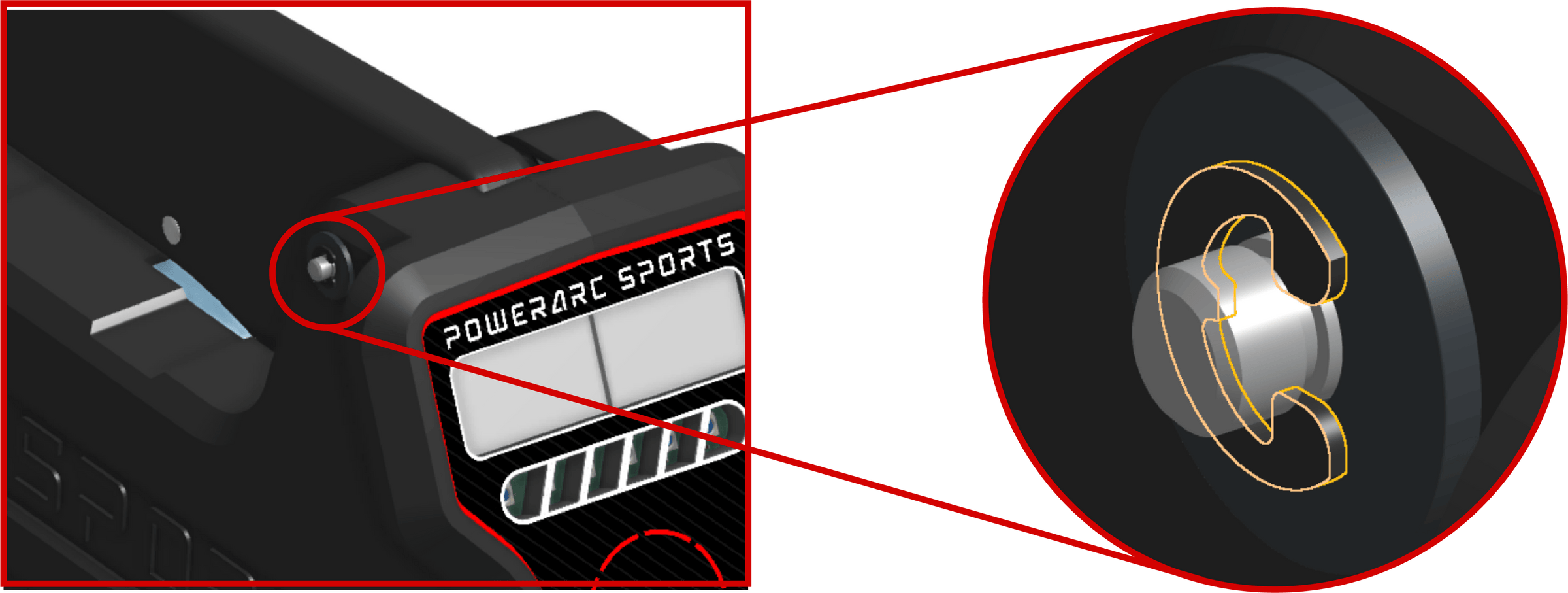

• Inspect that the two e-clips that secure the throwing arm are present and fully seated (as shown in image below).
• Inspect the battery for any signs of damage, swelling, leakage, cracks, or excessive heat.
• Do not use the machine, battery, charger, or power supply if any damage or abnormal condition is found.

After Use

• Remove dirt, dust, leaves, and debris from the machine.
• Wipe down exposed surfaces after outdoor use.
• Remove the battery before long-term storage.

Storage

Store the machine indoors in a clean, dry location. Protect the machine from moisture, rain, snow, standing water, direct sunlight, coastal air, and excessive humidity.

Lubrication

Do not lubricate any components unless specifically instructed by PowerArc Sports.

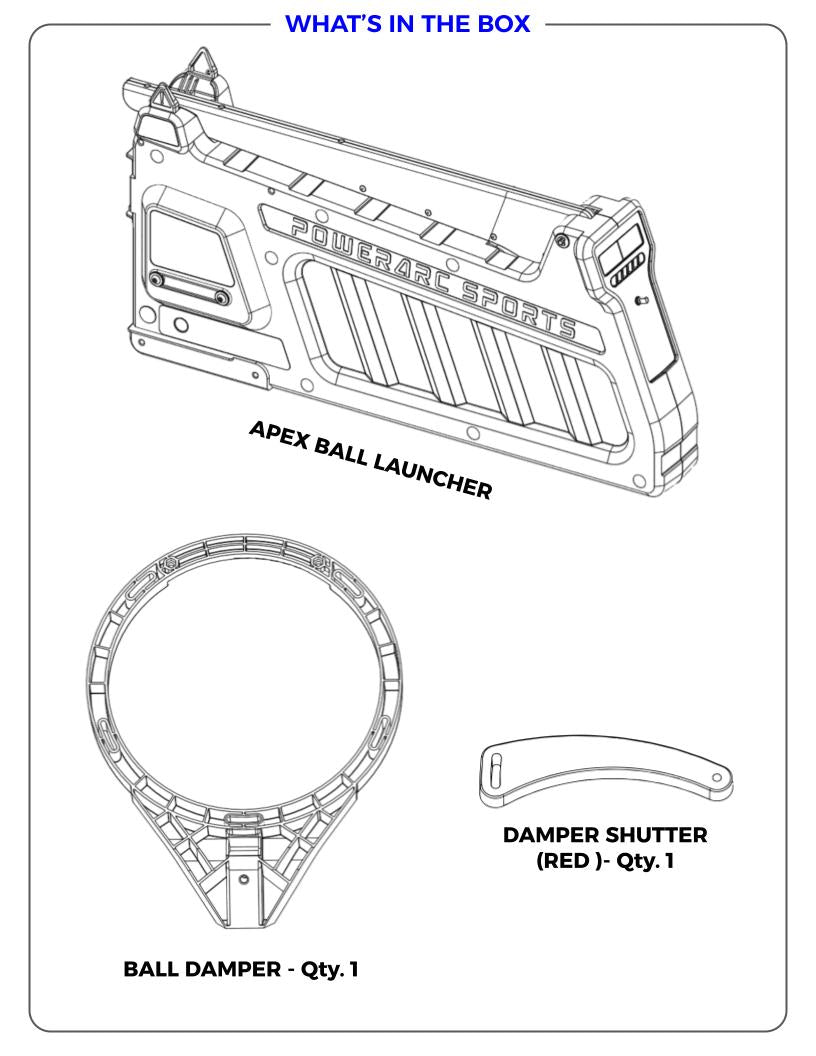

APEX ships in two boxes: one large box and one small box. Carefully unpack both boxes and remove all components. Before discarding any packaging materials, verify that all parts, accessories, and hardware are present as shown in the What’s Included section and the unboxing video.
